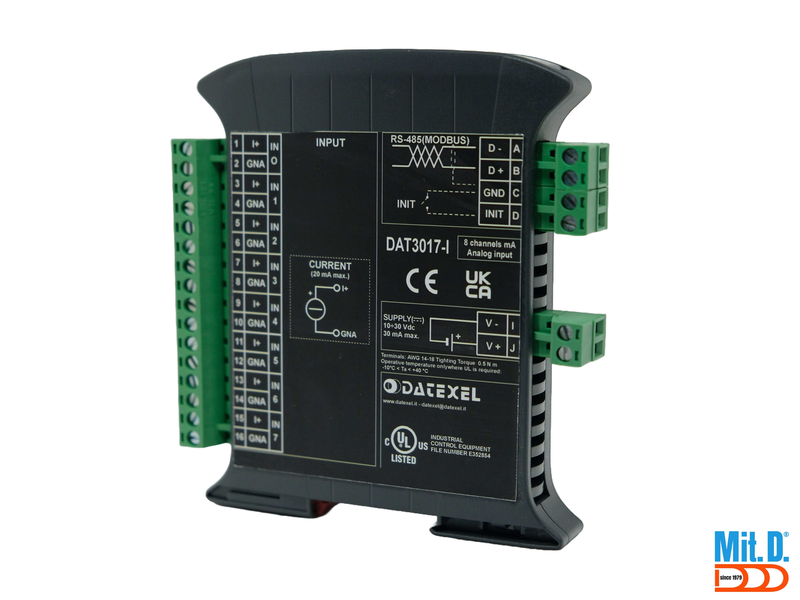

DAT 3017-I Datexel: 8-Channel Analog Input Module for Industrial Automation
In industrial automation systems, acquiring signals from sensors accurately, reliably, and consistently is essential for ensuring efficient process control. Among the process instrumentation solutions available from Mit.D. is the DAT 3017-I Datexel, an 8-channel analog input module designed to convert current signals into digital data, making integration with supervision and control systems simple and efficient.
DAT 3017-I: 8-Channel Analog Signal Acquisition
The DAT 3017-I features 8 analog current inputs capable of handling signals up to ±20 mA. The acquired values are converted into engineering units and transmitted digitally via MODBUS RTU/ASCII protocol over an RS-485 interface. A version with an RS-232 interface is also available for specific applications.
Thanks to Modbus communication, the DAT 3017-I can be easily integrated into PLCs, SCADA systems, and a wide range of industrial automation networks.
High Accuracy and Stable Measurements
The DAT 3017-I incorporates a 16-bit analog-to-digital converter, providing:
- High measurement accuracy
- Excellent long-term stability
- Minimal influence from temperature variations
- Reliable signal acquisition, even in demanding industrial applications
These features make it an ideal solution for applications requiring precise monitoring of analog current signals.
Maximum Reliability in Harsh Industrial Environments
To enhance system safety, the DAT 3017-I is equipped with dual Watch-Dog timers, ensuring continuous monitoring of the device's correct operation.
Additionally, the 2000 Vac galvanic isolation between inputs, power supply, and the RS-485 (or RS-232) serial interface eliminates ground loop effects, ensuring reliable communication even in electrically noisy and harsh industrial environments.
DAT 3017-I Available from Mit.D.
Mit.D. supplies the Datexel DAT 3017-I together with a complete range of industrial process instrumentation, offering technical support to help customers select the most suitable solution for their applications.
For more information about the DAT 3017-I, Datexel instrumentation, or any other products available from Mit.D., contact our team.
