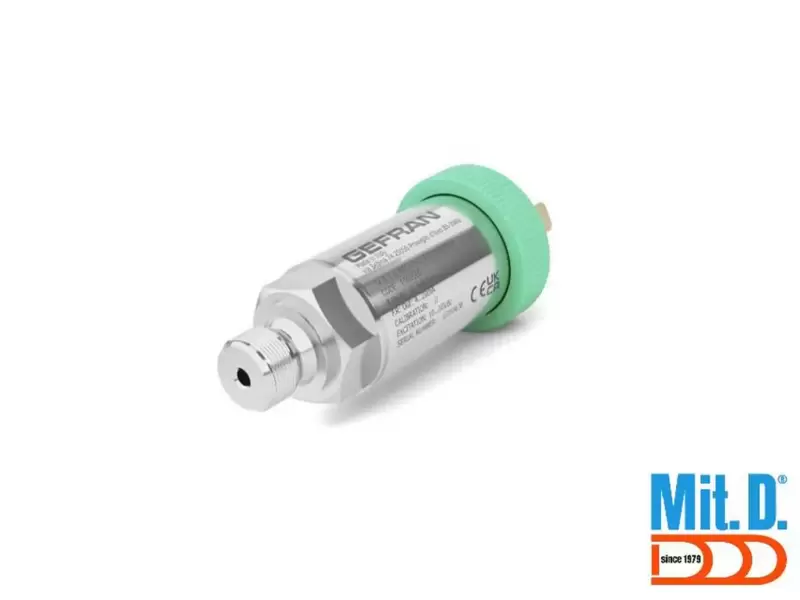

GEFRAN Pressure Transducer – TK Series
In the world of industrial automation and process control, precision is not an option — it is a necessity. If you are looking for a GEFRAN pressure transducer, the TK series represents the state of the art in reliability and versatility.
Why Choose the GEFRAN TK Series?
The TK series pressure transmitters are based on thick-film strain gauge measurement technology. Combined with highly stable electronic components, this technology makes these sensors ideal for applications requiring long-distance signal transmission or integration into intelligent control systems.
Main Technical Features
The GEFRAN TK series pressure transducer stands out thanks to its high-level technical specifications:
- Wide measurement ranges: From 0...3 up to 0...1000 bar, including vacuum and relative pressure ranges from -1...+1 to -1...+10 bar.
- High accuracy: Available with ±0.25% FS (typical) or ±0.5% FS (typical) accuracy classes.
- Robust construction: Manufactured with resistant materials such as AISI 430F and 17-4PH stainless steel for wetted parts, with an external AISI 304 stainless steel housing.
- Protection ratings: IP65, IP66, or IP67 depending on the electrical connection selected.
- Fast response times: Response time below 1 msec, ideal for fast dynamic processes.
Application Versatility: From Hydraulics to Pneumatics
Thanks to their robust design and excellent long-term stability (less than 0.2% FS per year), these sensors are suitable for a wide range of industries and applications. They have been specifically developed for pressure measurement in:
- Hydraulic systems
- Pneumatic systems
- Hydraulic circuits
- Process engineering and measurement
The TK series also offers outstanding configuration flexibility. Various output signals are available, including 4...20mA two-wire outputs and voltage signals such as 0...10Vdc. Multiple mechanical connections are also available (G 1/4, G 1/2, SAE, NPT), allowing installation on virtually any type of system.
Mit.D. Expertise at Your Service
Choosing a GEFRAN pressure transducer means relying on the quality of “Made in Italy” engineering. Choosing Mit.D. means benefiting from over 40 years of technical expertise and dedicated support.
We are ready to help you configure the TK model best suited to your needs by analyzing pressure requirements, electrical connections (such as M12 connectors, EN 175301-803 connectors, or shielded cables), and the operating conditions of your application.
Contact us to discover the full GEFRAN range available from Mit.D.
+39 0331 623491
