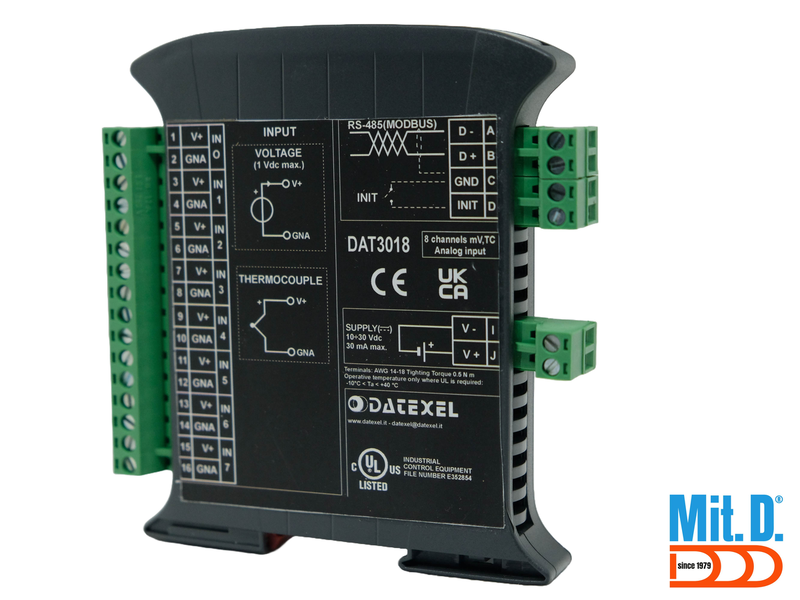

DAT 3018
The DAT3018 can acquire up to eight analog input signals simultaneously, converting them into digital data ready to be processed by supervision and control systems.
Thanks to support for the Modbus RTU/ASCII Protocol over an RS-485 network, the device can be easily integrated into existing installations, ensuring stable and reliable communication with PLCs, SCADA systems, and other industrial control platforms. A version featuring an RS-232 interface is also available for specific application requirements.
Maximum Flexibility for Multiple Applications
One of the main advantages of the DAT3018 is its ability to manage different types of input signals, making it suitable for a wide range of industrial sectors and applications.
The device supports:
- Thermocouples for temperature monitoring;
- Voltage input signals up to ±1 V;
- Automatic cold junction compensation for accurate thermocouple measurements.
This versatility simplifies system design and reduces the need for additional hardware components.
High Accuracy and Measurement Stability
At the core of the DAT3018 is a 16-bit analog-to-digital converter, engineered to deliver high measurement accuracy and excellent repeatability.
The precision of the acquired data remains stable over time, even when environmental conditions fluctuate, ensuring dependable performance in demanding industrial environments.
Enhanced Reliability with Dual Watchdog Protection
To increase system safety and prevent operational issues, the DAT3018 incorporates two independent Watchdog timers.
This technology continuously monitors device operation and enables rapid intervention in the event of anomalies, helping to improve process continuity and overall system protection.
Key Benefits of the DAT3018 by DATEXEL
Choosing the DAT3018 means benefiting from a solution designed to provide:
- Accurate and reliable data acquisition;
- Industrial communication via Modbus RTU/ASCII;
- Broad compatibility with sensors and measurement instruments;
- Easy integration into existing systems;
- Advanced operational safety;
- Long-term stability and reliability.
The Ideal Solution for Process Monitoring and Control
Thanks to its advanced technical features, the DAT3018 by DATEXEL is an effective solution for applications requiring the conversion, acquisition, and transmission of analog signals with high levels of precision.
